RF77DM71S4詳細信息
RF77DM71S4
訂購熱線：13360667204
關鍵詞：7.5千瓦三向減速電機_RF77DM71S4_RF77DT71S4
RF77DM71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| RF77DM71S4 | 195.24 | 0.37KW | 7.1rpm | 495N.m | 46.5kg | 12100N | 1.65 |
| RF77DM71S4 | 166.59 | 0.37KW | 8.3rpm | 425N.m | 46.5kg | 12400N | 1.90 |
| RF77DM71S4 | 145.67 | 0.37KW | 9.5rpm | 370N.m | 46.5kg | 12600N | 2.20 |
| RF77DM71S4 | 138.39 | 0.37KW | 10rpm | 350N.m | 46.5kg | 12600N | 2.30 |
| RF77DM71S4 | 121.42 | 0.37KW | 11rpm | 310N.m | 46.5kg | 12800N | 2.60 |
| RF77DM71S4 | 102.99 | 0.37KW | 13rpm | 260N.m | 46.5kg | 12900N | 3.10 |
| RF77DM71S4 | 92.97 | 0.37KW | 15rpm | 235N.m | 46.5kg | 12900N | 3.40 |
RF77DT71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| RF77DT71S4 | 166.59 | 0.55KW | 8.30rpm | 630N.m | 51kg | 11400N | 1.30 |
| RF77DT71S4 | 145.67 | 0.55KW | 9.50rpm | 550N.m | 51kg | 11800N | 1.50 |
| RF77DT71S4 | 138.39 | 0.55KW | 10.0rpm | 525N.m | 51kg | 12000N | 1.55 |
| RF77DT71S4 | 121.42 | 0.55KW | 11.0rpm | 460N.m | 51kg | 12200N | 1.75 |
| RF77DT71S4 | 102.99 | 0.55KW | 13.0rpm | 390N.m | 51kg | 12500N | 2.10 |
| RF77DT71S4 | 92.97 | 0.55KW | 15.0rpm | 350N.m | 51kg | 12600N | 2.30 |
| RF77DT71S4 | 81.8 | 0.55KW | 17.0rpm | 310N.m | 51kg | 12800N | 2.60 |
| RF77DT71S4 | 77.24 | 0.55KW | 18.0rpm | 290N.m | 51kg | 12800N | 2.80 |
| RF77DT71S4 | 65.77 | 0.55KW | 21.0rpm | 250N.m | 51kg | 12900N | 3.30 |
RF77DM71S4齒輪減速機馬達類型：
RX..DR..單級底腳安裝斜齒輪減速電機
RXF..DR..單級B5法蘭安裝斜齒輪減速機電機

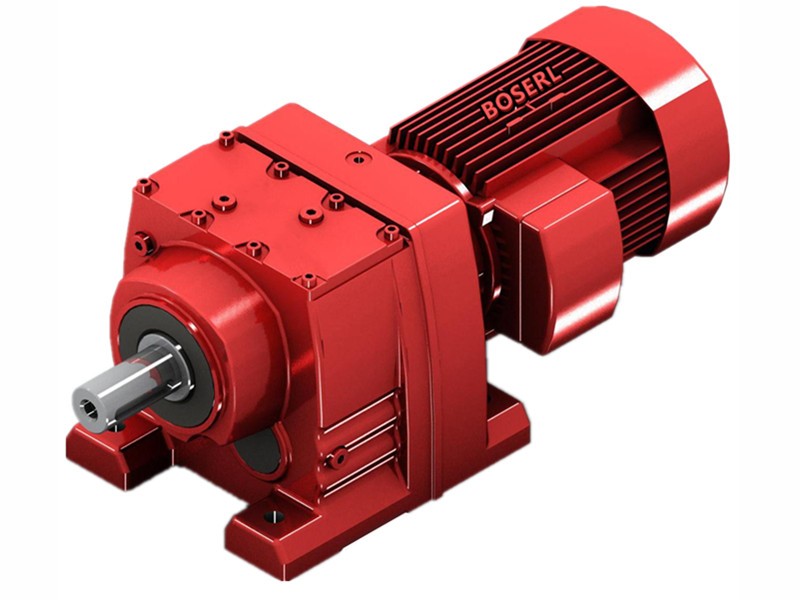

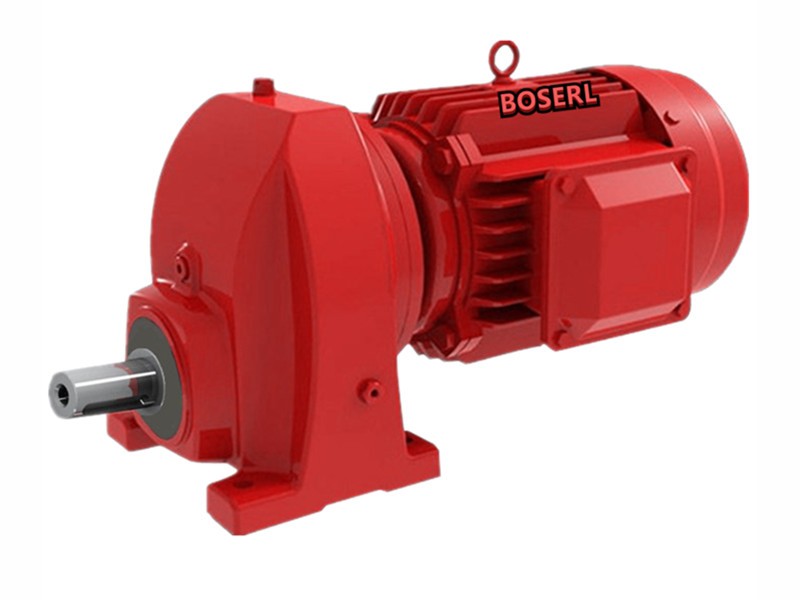

R..DR..底腳安裝斜齒輪減速電機
R..F DR..底腳、B5法蘭安裝斜齒輪減速電機

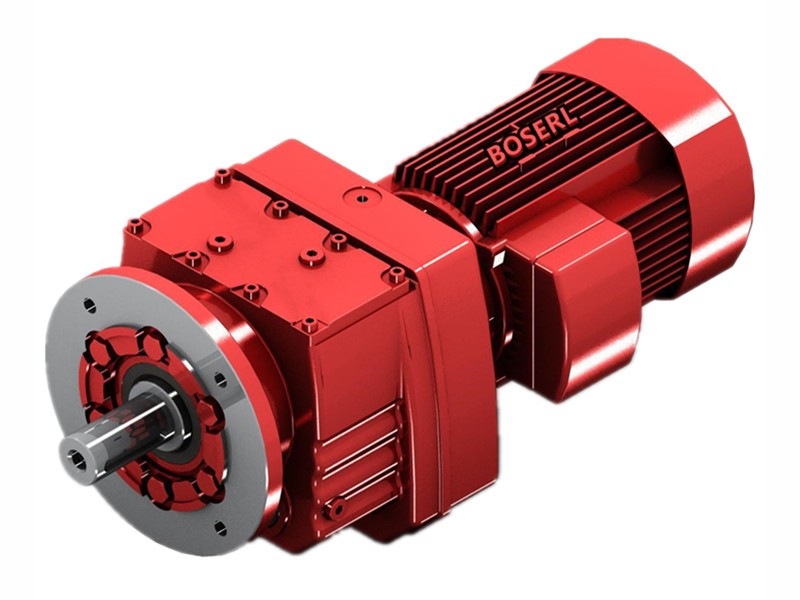

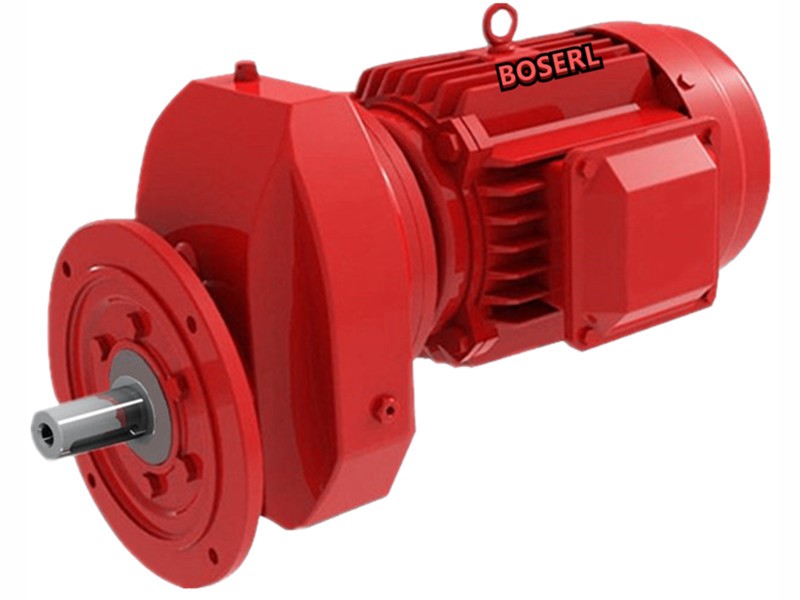

RF..DR..B5法蘭安裝斜齒輪減速電機
RZ..DR..B14法蘭安裝斜齒輪減速電機

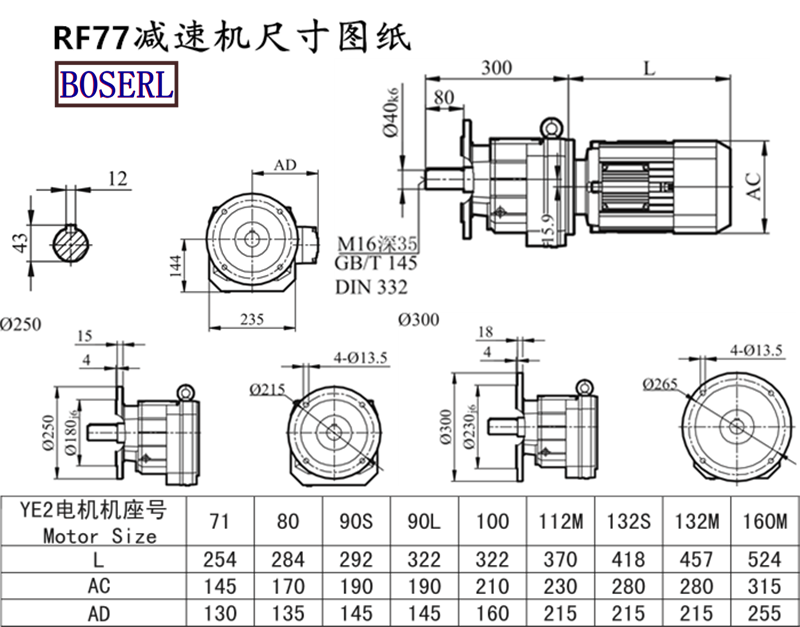

RF77DM71S4齒輪減速機馬達安裝尺寸圖紙
RF77DM71S4齒輪減速機馬達生產工廠展示：看廠請?zhí)崆叭祛A約
立式減速機應用案例展示：
關鍵詞:RF系列減速機與電機_立式減速機_立式齒輪減速電機一套_立式齒輪減速機_RF系列減速機生產廠家_立式減速機生產廠家_立式齒輪減速機生產廠家
RF系列減速機型號：RF17減速機,RF27減速機,RF37減速機,RF47減速機,RF57減速機,RF67減速機,RF77減速機,RF87減速機,RF97減速機,RF107減速機,RF137減速機,RF147減速機,RF167減速機
RF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 7.5千瓦三向減速電機 RF77DM71S4 RF77DT71S4
